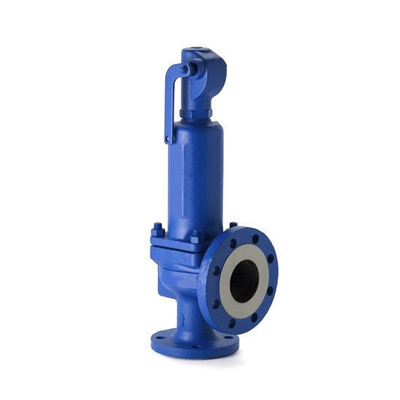

Safety Relief Valve
| Size | 25〜200A |
| Fluid | Steam, gases, liquids |
| Set pressure | 0.05〜2.0MPa |
| Max. temperature | 205, 220, 300℃ |
| Material | BodyーFC, SCPH, SCS |
| Valve disc/seatーSUS | |
| Connection | Flanged |
| ● | Full bore, large capacity |
| ● | High erosion-resistance due to STELLITE-faced valve disc and valve seat |
| ● | Easy adjustment by single ring |
| ● | Simple construction for easy maintenance |
